130" Transonic
DP The fastest R/C glider in the world -- 545mph...

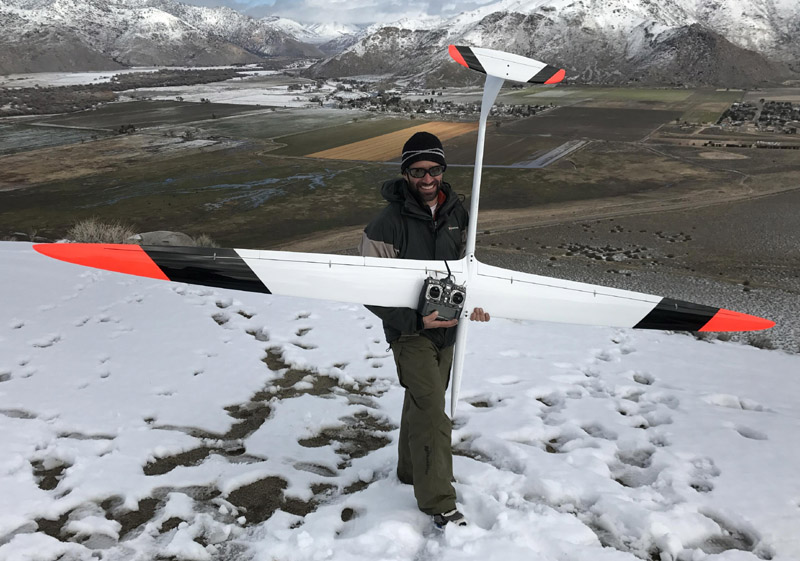

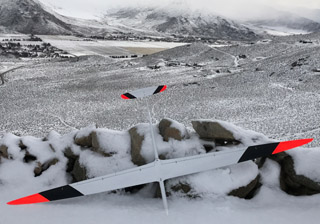

Introducing the all new Kinetic Transonic DP! This plane was designed and built for all-out speed while still maintaining a mild mannered
easy to fly behavior at frontside speeds. Our goal was to achieve the highest speed possible without resorting to swept
wings. As usual, Dirk Pflug provided the airfoils and Thomas Pils provided a huge amount of design work as well as machining
the fuselage molds. Jarda did an excellent job making the wing and stab molds in CZ and shipped them to me here in the US.
Dirk Pflug designed a suite of airfoils which were designed to delay the shock formation as long as possible and minimize the
drag divergence up to 580mph. Dirk was also able to get help from Stuttgart University to optimize the wing using MSES.
Our hope is that this transonic tailoring will allow the model to maintain a high wind-speed multiple well into the 500+mph
range where other models performance drops off more rapidly. Although the airfoils were designed for transonic mach numbers,
their performance remains surprisingly good at lower speeds. The 22:1 aspect ratio should also help boost the low speed
performance where the airfoils are not in their prime.
Setup
|
|
|
|
|
|
Trim the 130" TransonicDP so that the elevator is neutral in normal level flight. The flaps and ailerons should be trimmed flush for hands off flight and using snapflap, the flaps can be deflected downward as much as 2deg with full up elevator if extra tipstall protection is desired (although not needed so far). For Crow, leave ailerons flush and program, 75-90deg down Flaps, and 0.09" (2.3mm) down elevator. Keep in mind that this will vary with CG…
|
Control Horn Measurements
|
|
|
|
|
Hole to Skin Distance
|
|
|
|
|
aileron
|
.inch" (xxxmm)
|
Locate leading edge of horn .5mm behind hingeline
|
flap
|
inch" (xxxmm)
|
inch" (xxxmm) behind hingeline
|
|
|
elevator
|
inch" (xxxmm)
|
inch" (xxxmm) behind intersection of wiper and elevator skin
|
|
|
|
|
|
|
|
***
|
Make the servo arm length 7mm for ailerons and 10mm for flaps.
|
|
***
|
Angle the flap servo arm roughly 40degrees forward so flaps are partially locked out.
|
***
|
Set aileron servo horn roughly 35degrees aft so that it is square (90deg) to the pushrod at neutral trim.
|
|
|
|
|
|
|
|
Recommended Surface Deflections
|
|
|
|
|
|
|
|
|
|
|
Landing
|
Dynamic Soaring
|
|
|
Up
|
Down
|
Up
|
Down
|
|
aileron
|
.315" (8mm)
|
.315" (8mm)
|
.083" (2.1mm)
|
.071" (1.8mm)
|
|
flap
|
|
70-90deg
|
|
|
|
elevator
|
.118" (3mm)
|
.177" (4.5mm)
|
.108" (2.75mm)
|
.108" (2.75mm)
|
|
|
|
|
|
|
|
Recommended Gear
|
|
Ailerons:
|
MKS HV6130
|
Flaps:
|
Four MKS HV747
|
Elevator:
|
MKS HV747 in tail
|
Battery:
|
5cell / 2s Li-Ion LG MJ-1 3500mah
|
Center of Gravity:
|
3.0" (7.62cm) from center panel root LE
|
